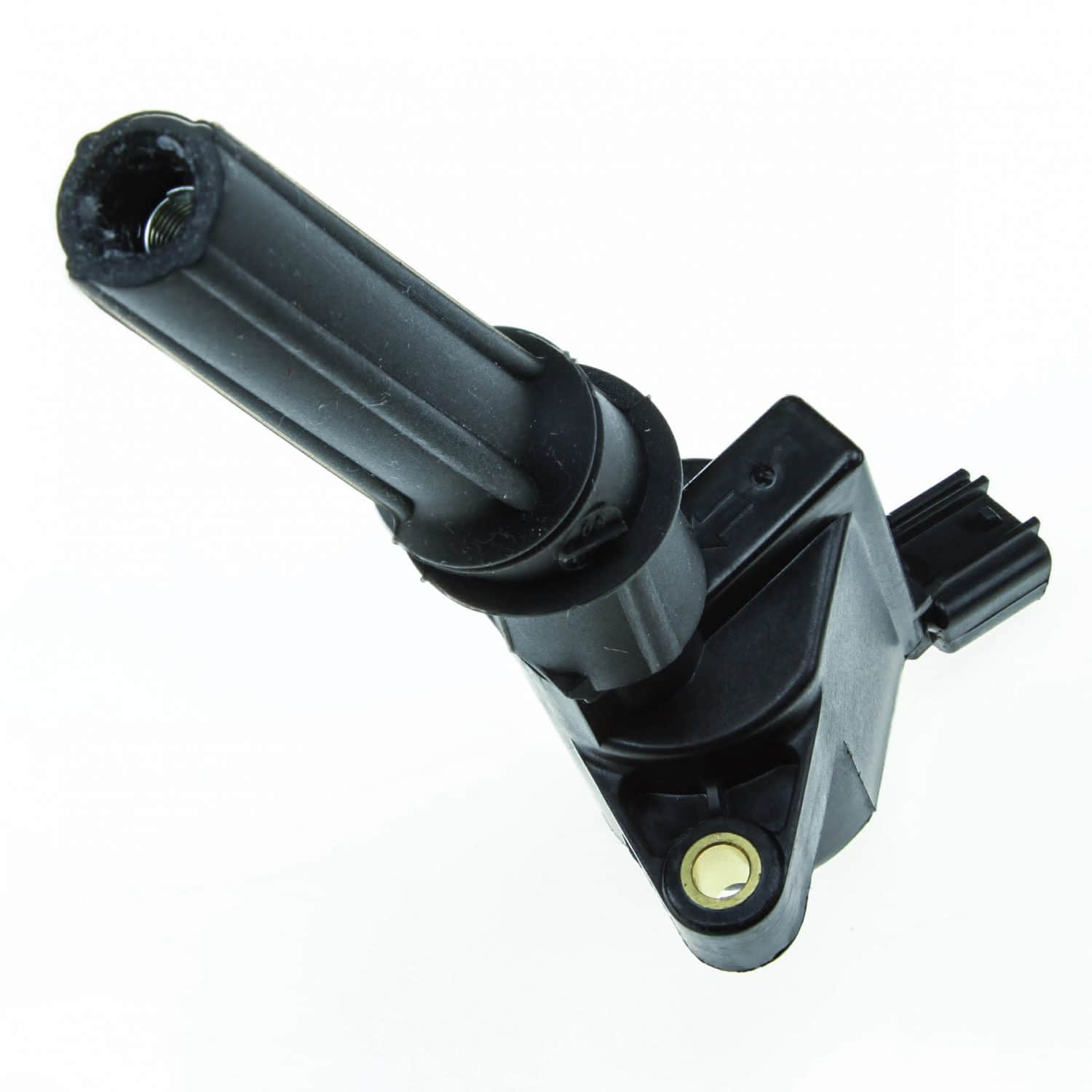

Coil on Plug Coil IGN-1FD Ford Style DIYAutoTune

The IGN-1FD coil is sized for Ford modular motors for some extra spark compared to stock. Basically, this is a hotter clone of the Motorcraft DG508. Designed to fit 2000-2004 Mustang GT and 2001-2004 Mustang Cobra as well as many trucks, Crown Victorias, and other modular motors.

Requires a spark plug boot, not included but available at most auto parts stores if you need new ones. Give your mod motor more spark, or put coil on plug on an engine that never originally had it.
Here are the specifications:

• Recommended coil dwell: 1.2 to 2.5 ms
• Maximum dwell: 2.85 ms
• Primary resistance: 0.5 – 0.52 omhs
• Primary inductance: 1.413-1.418 mH
• Maximum current: 7.11 amps at 2.85 ms dwell
• Max spark output: 36 mJ
