1/4 Inch Universal Air Line Kit SDHQ Offroad

SKU:
00-1004-25-15-JMKL
$44.95
Category:
Air Hose
Air Related Parts
Air & Fuel
Brand:
SDHQ Offroad

WE DO NOT SELL ANY PARTS

Please use the Find a Dealer button to locate a retailer
Product Description:

Introducing our new SDHQ Built universal air line kit! These kits are universal and can be used with just about any air system. Included with each kit are the components needed to get the airline added to your system, whether it is for a remote-mounted chuck or just doing maintenance on old lines.

Key Features:

  • Premium Eaton Aeroquip Synflex Air Tubing
    • Superior Abrasion Resistance
    • Enhanced Flexibility and Extension
    • Flow Performance
    • UV Stabilized, Thermoformable
    • 350 PSI Max Working Pressure, 1200 PSI Minimum Burst Pressure
    • D.O.T. FMVSS 106,SAE J1131,SAE J2494-3,SAE J844 Type A
  • Premium AIGNEP SWIFTFIT Push-to-Connect Fittings
    • Nickel Plated Brass Construction
    • FIts: NPT/NPTF, BSPP, BSPT and BSP threads
    • Reduced Overall Length
    • 290 PSI Max Working Pressure

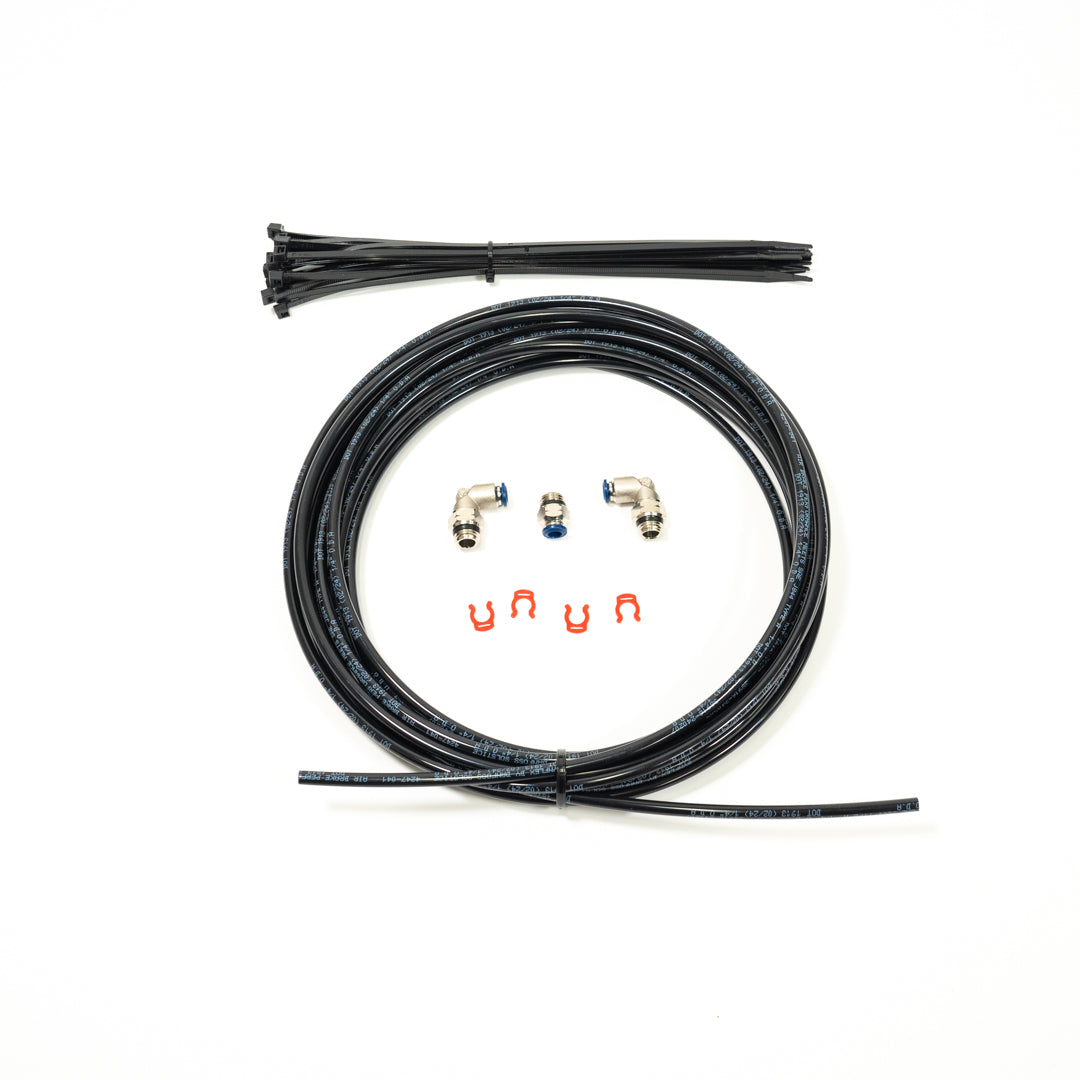

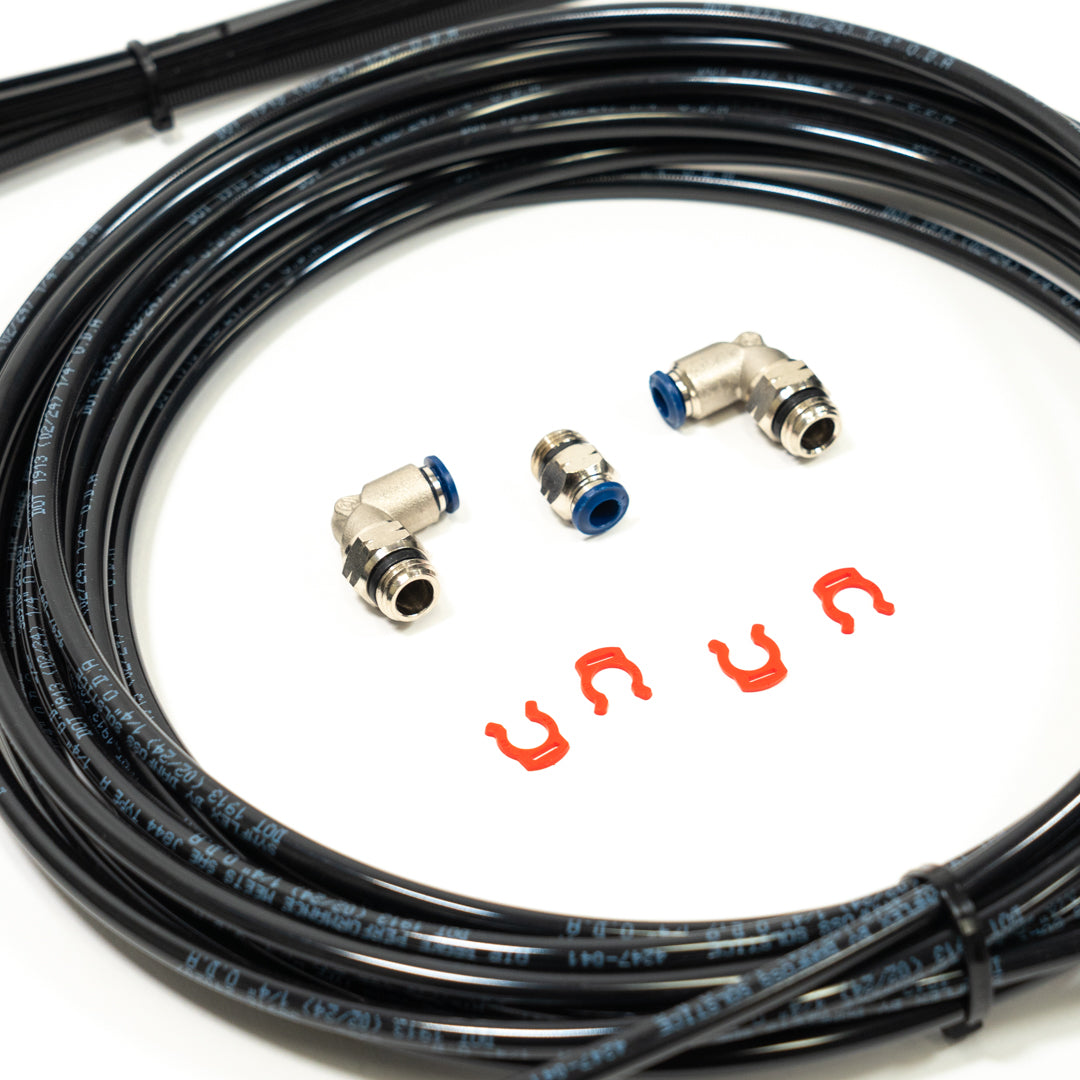

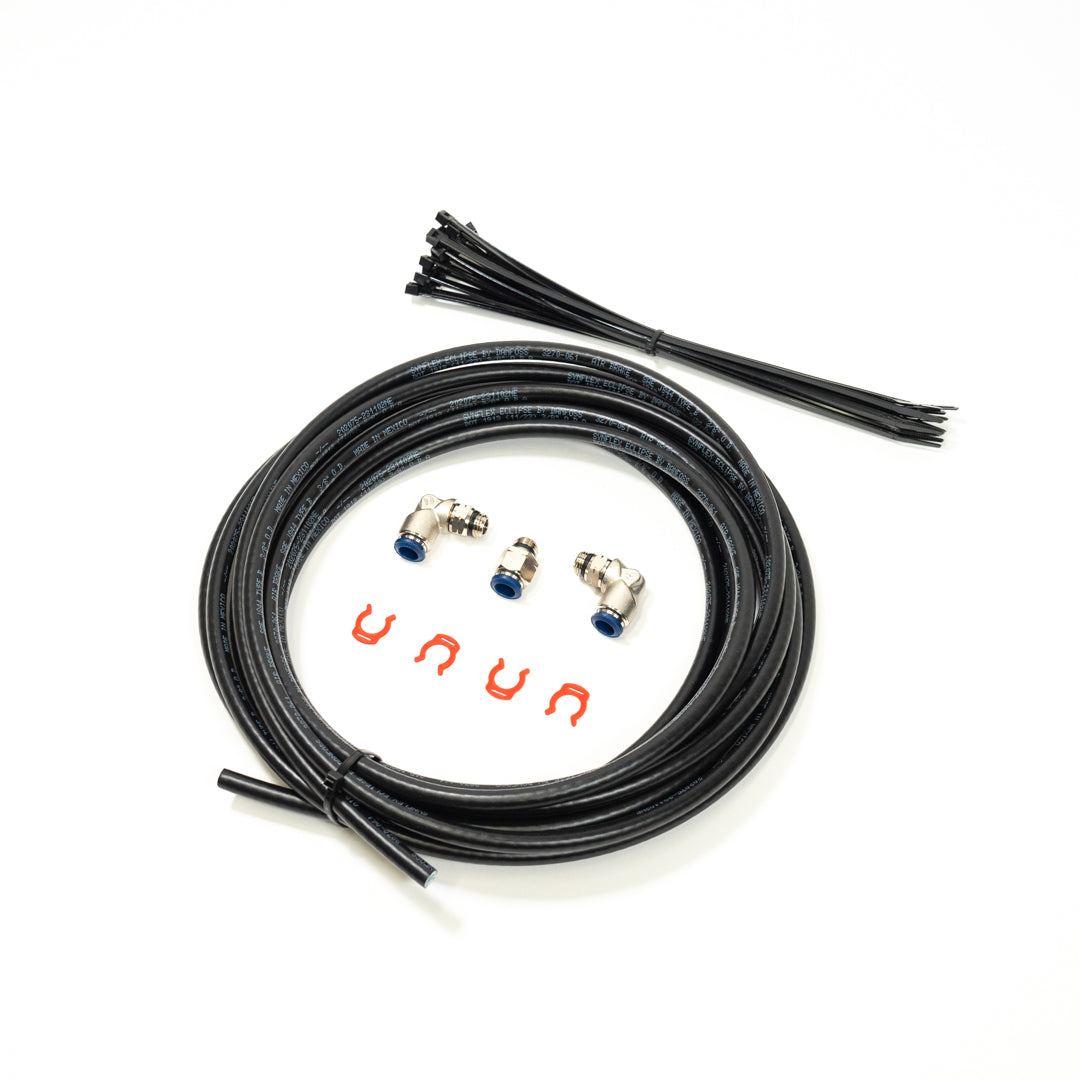

Included parts for the 1/4 inch kit:

  • (1) 1/4 inch Straight Push-to-connect fitting
  • (2) 1/4 inch 90 Degree Push-to-connect fittings
  • 15ft, 25ft, or 35ft of 1/4 inch airline
  • (4) push-to-connect security clips
  • (20 or 30) 11 inch zip ties
